Temperature Controlled Wine Store

Space Engineering were approached to supply and install cooling equipment for a wine storage facility in Central London.

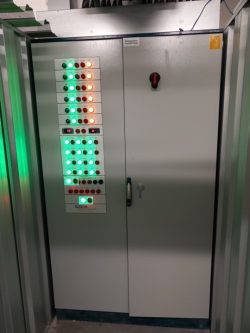

As part of a larger storage facility, the designated level needed to be equipped with an energy efficient, future proof system, holding the room at +12°C. We selected an external glycol chiller and 12 internally positioned duel discharge coolers running from a control system with a common control panel.

The required calculated duty was 60kW so we installed a system with a cooling capacity of 62kW spread across the 12no coolers.

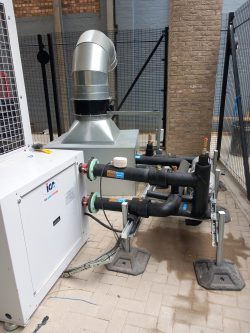

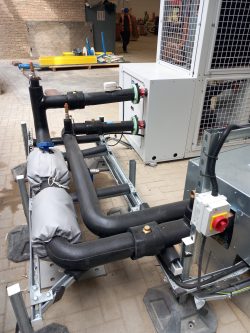

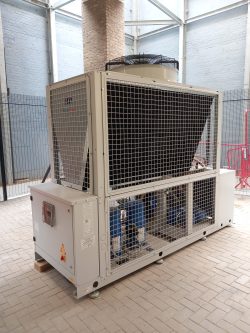

The packaged glycol chiller selected was ICS Aptus Modular ATFII 080. The unique design allowed for an ultra-compact footprint with the capability to connect multiple units together in a modular configuration, ensuring maximum flexibility.

The chiller incorporated:

One independent refrigeration circuit
Two scroll compressors
Two steps of capacity control
Dual pump high head pressure
Buffer tank
Stainless steel brazed plate heat exchanger
Microprocessor controller with digital display
Electronic expansion valve

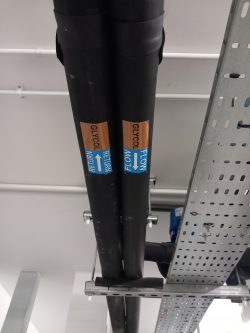

In order to achieve the required room temperature, our design glycol supply temperature was +2°C with a return temperature of +8°C. The cooling medium is 30% Propylene glycol with the primary refrigerant for the external chiller being R454b

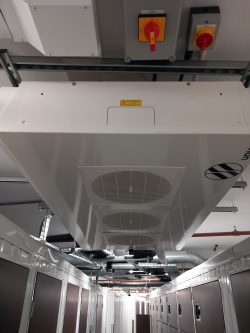

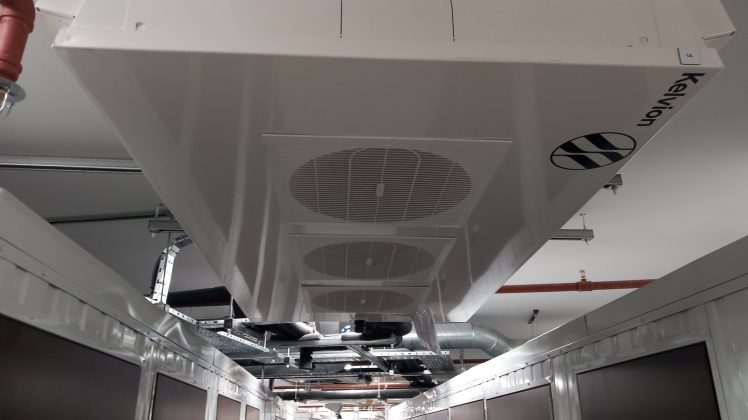

The coolers selected were 8no Kelvion three fan dual discharge coolers and four single fan dual discharge coolers. Additional coil heaters were fitted to each unit to allow for heating and dehumidification control. They also included:
